0.5mm ZIF S/A Reverse Type SMT FPC Connectors H=4.4&4.95 / PIN 4-60
Product Description :
| Product name : | DALEE connectors |
| Secification : | 0.5mm Pitch-H=4.4&4.95, |
| Connector Type : | ZIF S/A Reverse |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| MOQ : | 1000PCS |
| MPQ : | 1000PCS |
| Sample : | Free for 1-30pcs |
| Application : | communications technology, medical equipment, industrial automation, instrumentation, network monitoring equipment and so on |
| Shipping Terms : | EXW,FOB,DDU |
| Payment Terms : | T/T, Paypal, L/C |
Material:
Housing : LCP, White, Flammability Rating(UL94V-0)
Actuator : LCP,Black,Flammability Rating(UL94V-0)
Terminal : Phosphor Bronze
Fitting Nail : Phosphor Bronze

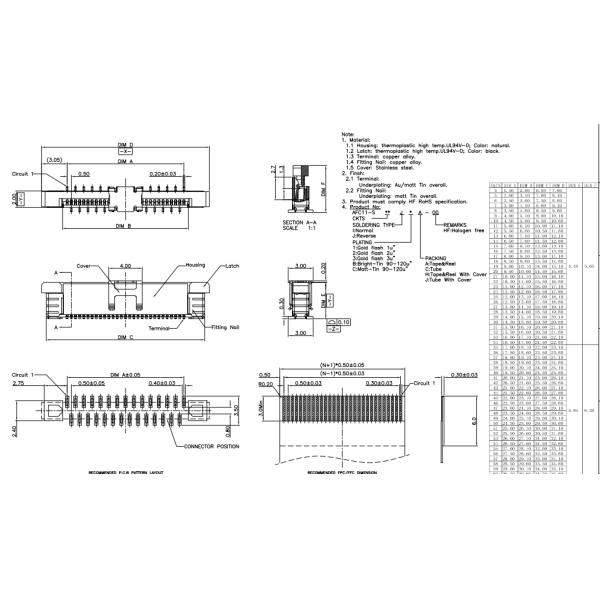

Drawing:
Competitive Advantages:
1, 10 year's experience in the electronic business
2, Strong R&D team specialized in connector and model design
3, Quality certification ,including ROHS,SGS,ISO9001 and UL certification
4, Strict shipping ,100% tested before delivery
5, Fast delivery,purchasing orders shipped in 3-10 days
6, Samples can be provided for free in 1-3 days
Product Application:
Payment term and delivery
1. MOQ:1000pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal , Western Union or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
Why choose us ?
1. 11 years experience of developing, selling electronic connector products such as FFC/FPC connectors, Board to board connectors, FFC flat cable, SMT wafer series / wire to board connector, SD/TF/ SIM card connector and USB connector.
2. Our production techonlogy and raw material are in conformity with ROHS environment directive of EU.
3. Manage company constantly improves itself with the policy of "human-oriented" to create a large number of experts in technology.
4. Lead-time is 7-10 work days, but please feel assured, we will try our best to shorten the time.
5. After-sale service: If the product of any quality problems, if it is our responsibility, then returned; if it is used improperly, then provide solution.
Dalee connectors is your best choose . welcome to any RFQ!!
Product Tags:
|
|
0.5mm ZIF S/A Reverse Type Electrical Wire Connectors Relative Humidity 90% Max Images
|
